Grundfos Implements Alternate Terminal Box for UPS 26-99 FC

Grundfos
Written By Kyle Kinkade

The Grundfos UPS 26-99 FC 115V (52722512) produced from May 31st, 2022 to approximately July 8th, 2022 will contain an alternate terminal box. This change allows Grundfos to continue production amid global supply chain challenges. The alternate box:

  • Includes production date codes 2222 through 2228.

  • Features the same agency approvals and ratings as the standard box.

  • Displays two conduit holes, one on each side of the box, which are not threaded as they are on the standard terminal box.

  • Will not be compatible with Grundfos’ terminal box-mounted Timer Assembly Kit (599388).

Please see the images below and contact us with any questions.

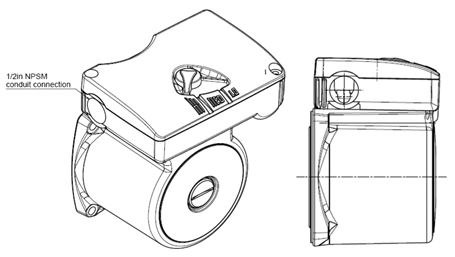

Standard Terminal Box

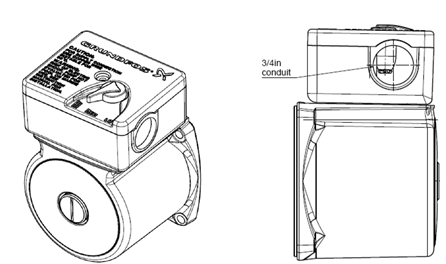

Alternate Terminal Box
